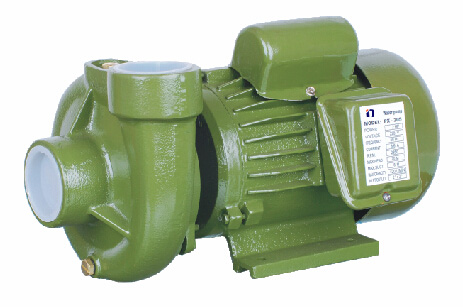

PX series centrifugal pump

The centrifugal pump with a single impeller can provide high flow, stable water flow, and can regulate the flow in a large range without causing damage to the pump.

In order to ensure the normal operation of the pump, please fill the pump with clean water or non corrosive liquid without small solid impurities.

Scope of application: garden, agricultural and industrial mobile irrigation systems.

Water pump

Pump body: cast iron

Impeller: copper

Mechanical seal: carbon/ceramic/stainless steel

electric machinery

single-phase

Heavy duty continuous operation

Casing: cast iron

Shaft: carbon steel/stainless steel

Insulation grade: B/F

Protection grade: IP44/IP54

Cooling mode: external ventilation

Conditions of Use

Liquid temperature ≤ 60 ℃

Ambient temperature ≤ 40 ℃

Suction head ≤ 9M

Continuous operation
