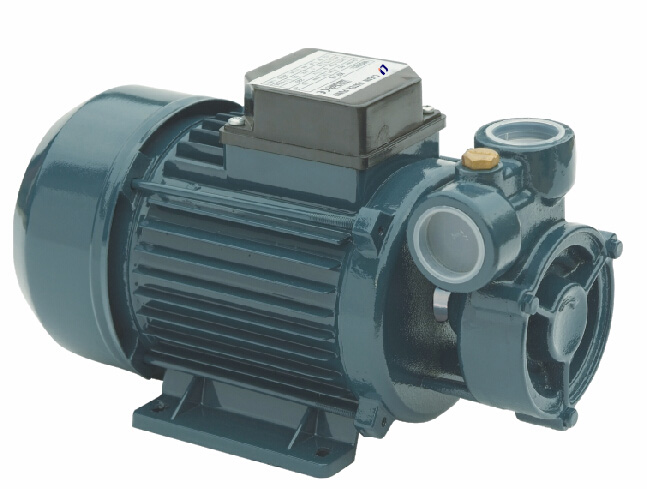

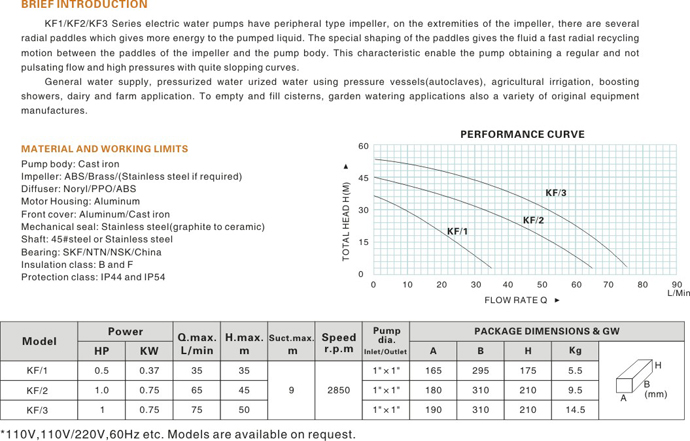

KF series clean water electric pump

This series of pumps is equipped with a vortex impeller, which has small power, but can provide high pressure, and has a special stable operation curve.

In order to ensure the normal operation of the pump, please fill the pump with clean water or non corrosive liquid without sand particles or solid impurities.

Scope of application: household use, increase the pressure of pipeline system, and automatically pump water with high-pressure tank and water device.

Water pump

Pump body: cast iron

Impeller: copper

Motor front cover: cast iron/copper

Mechanical seal: carbon/ceramic/stainless steel

electric machinery

single-phase

Heavy duty continuous operation

Casing: aluminum

Shaft: carbon steel/stainless steel

Insulation grade: B/F

Protection grade: IP44/IP54

Cooling mode: external ventilation

Conditions of Use

Liquid temperature ≤ 60 ℃

Ambient temperature ≤ 40 ℃

Suction head ≤ 9M

Continuous operation
